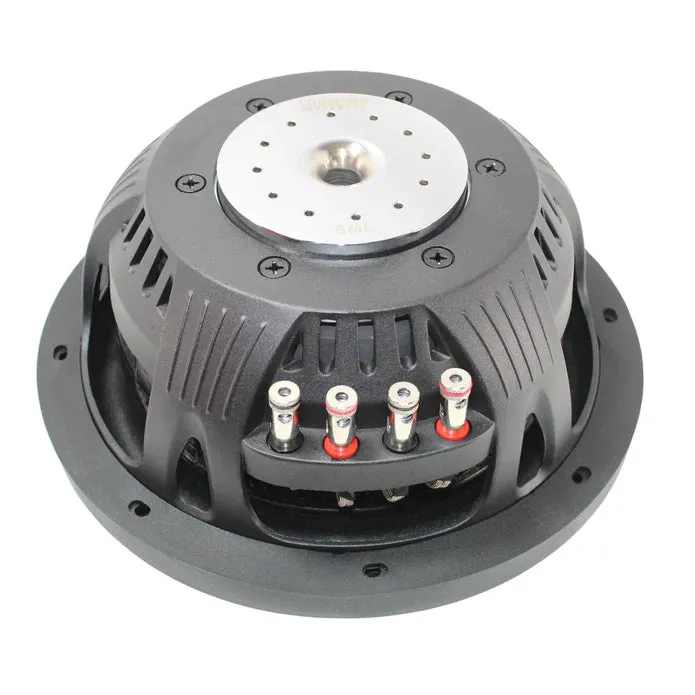

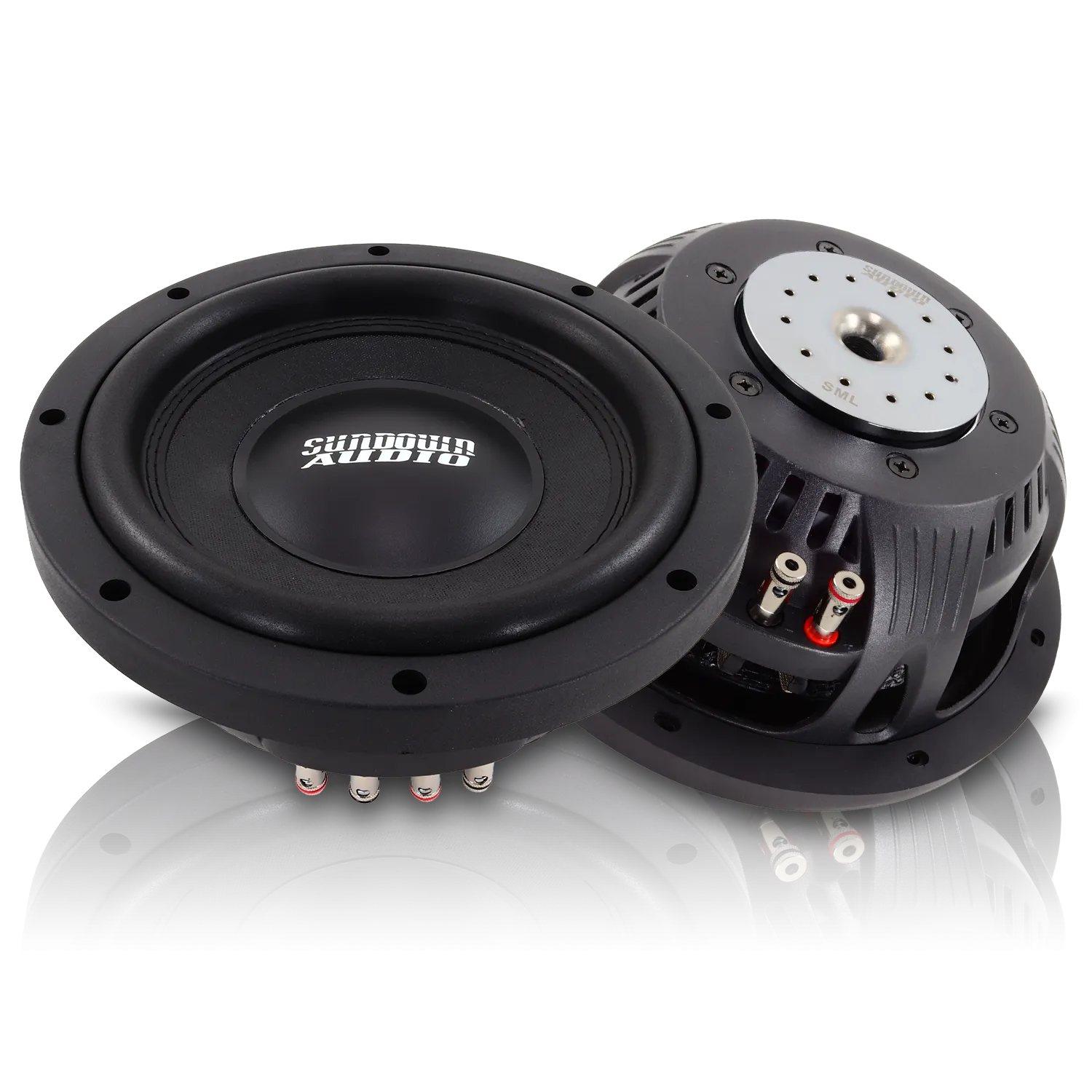

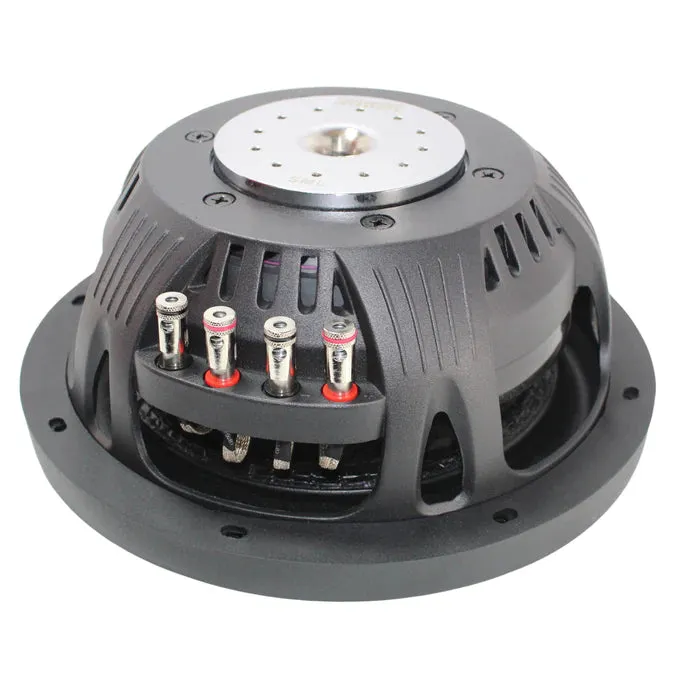

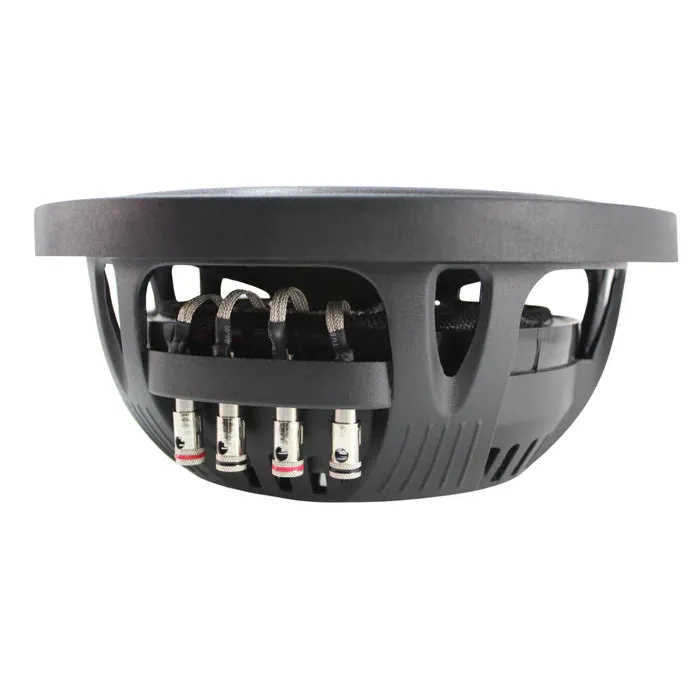

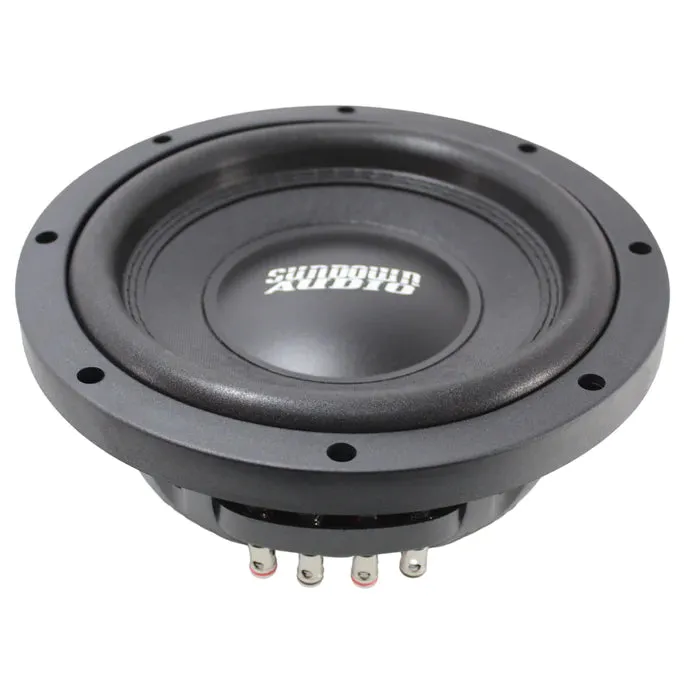

Sundown audio’s SML 10 is the thin subwoofer line. This 500 WATT RMS subwoofer is designed for tight spaces and super low fs, this shallow 10. That gets down for big bass sound. Great for motorcycles, coupe sports cars with little space and even motorcycle bags.

• Features

  • Xmax = 11mm one-way by 70% BL
  • Xmech is a hard limit of 25mm one-way for 12s and 20mm one-way for 10s
  • RMS Power = 500-watts
  • Black Aluminum 2.5” voice coil former for superior heat dissipation
  • High Temperature 4-Layer copper voice coil wire
  • Stitched-On “Mini-XL” Tinsel Leads to prevent fatigue and failure
  • Vented Pole-Piece and Multi-Vented Magnetic Gap
  • Dual-Magnet Design for appropriate motor force factor and mid QTS
  • Custom tooled cone shape for reduced mechanical noise over high excursion
  • Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures
    ** This motor is bolted through the top so the bolts are not visible from the back like several other models.
  • Magnet ID shorting ring



  SML 10"

  T/S SPECS	SML 10" D2	SML 10" D4
  RE (Ohms)	3.650	6.850
  FS (Hz)	35.210	36.116
  VAS (L)	23.679	24.828
  Qes	0.931	0.469
  Qms	2.703	2.766
  Qts	0.341	0.401
  BL (NA)	17.431	21.022
  Mms (Grams)	146.986	133.242
  Cms (uM/N)	139.003	145.749
  Sens (dB @ 1w/1m)	86.1dB	85.8dB



  SML 10"

  	SML 10"
  Sealed Enclosure	0.5-0.75 ft^3
  Ported Enclosure	1.0-1.25 ft^3
  Recommended Tuning	35hz
  Recommended Port Area
  Mounting Depth	3.78”
  Physical Dimensions
